Straining Element Design Specification Sheets

The following downloadable sheets can be used to order basket and screens from Titan Flow Control, helping to ensure that your order is made to your requirements.

Titan's Screens and Baskets are MADE IN THE USA

Style A - Cylindrical Screen

Order Sheet for Style A
Cylindrical Screen

Style B - Slanted Type Basket

Order Sheet for Style B
Slanted Type Basket

Style C - Basket Type

Order Sheet for Style C
Basket Type

Style D - Temporary Conicals

Order Sheet for Style D
Temporary Conical

Style E - Temporary Basket

Order Sheet for Style E
Temporary Strainer

Style F - Temporary Basket

Order Sheet for Style F

Tee Strainer

Straining Solutions for Your Needs!

Titan FCI manufactures a wide variety of screens and baskets for specific applications. Below are some of Titan's straining element capabilities, but we would be happy to develop a solution for your unique situation.

Specialty Perforations
Mesh-lined Screens/Baskets
Dutchweave Meshes
Wide Variety of Materials, ranging from exotic types of steel to polypropylene
Magnetic Screen Assemblies
Drilled or Wedgewire Screens
Pleated Straining Elements
Multiple Basket Assemblies
Large Quantity Orders
Large-Sized Baskets and Screens

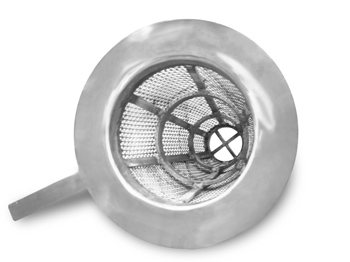

Reinforced Cone Strainer

An example of a reinforced cone strainer manufactured by Titan FCI for a special application.

Call Today - 910-735-0000

Download all Straining Element Order sheets:

Additional Technical Data
